External Trigger Interface (ETI) controller - Inter-device trigger signals management for TEM
ETI manages trigger connections between devices, including scan controllers, high-speed cameras and detectors, as well as beam blankers. It can be used to switch between trigger sources, to mix multiple triggers, and to convert between TTL and LVDS standards.
✅ Switch between two trigger devices manually or automatedly, for example switching a fast camera to the active scan controller.
✅ Mix two trigger devices, for example enable a beam blanker to open on signals from two scan controllers.
✅ Convert TTL to and from LVDS trigger signals, for example connecting a TTL camera with a LVDS scan controller.
✅ Generate internal trigger signals for testing connections and settings.
ETI is easily controlled via touch display. No extra software is needed.

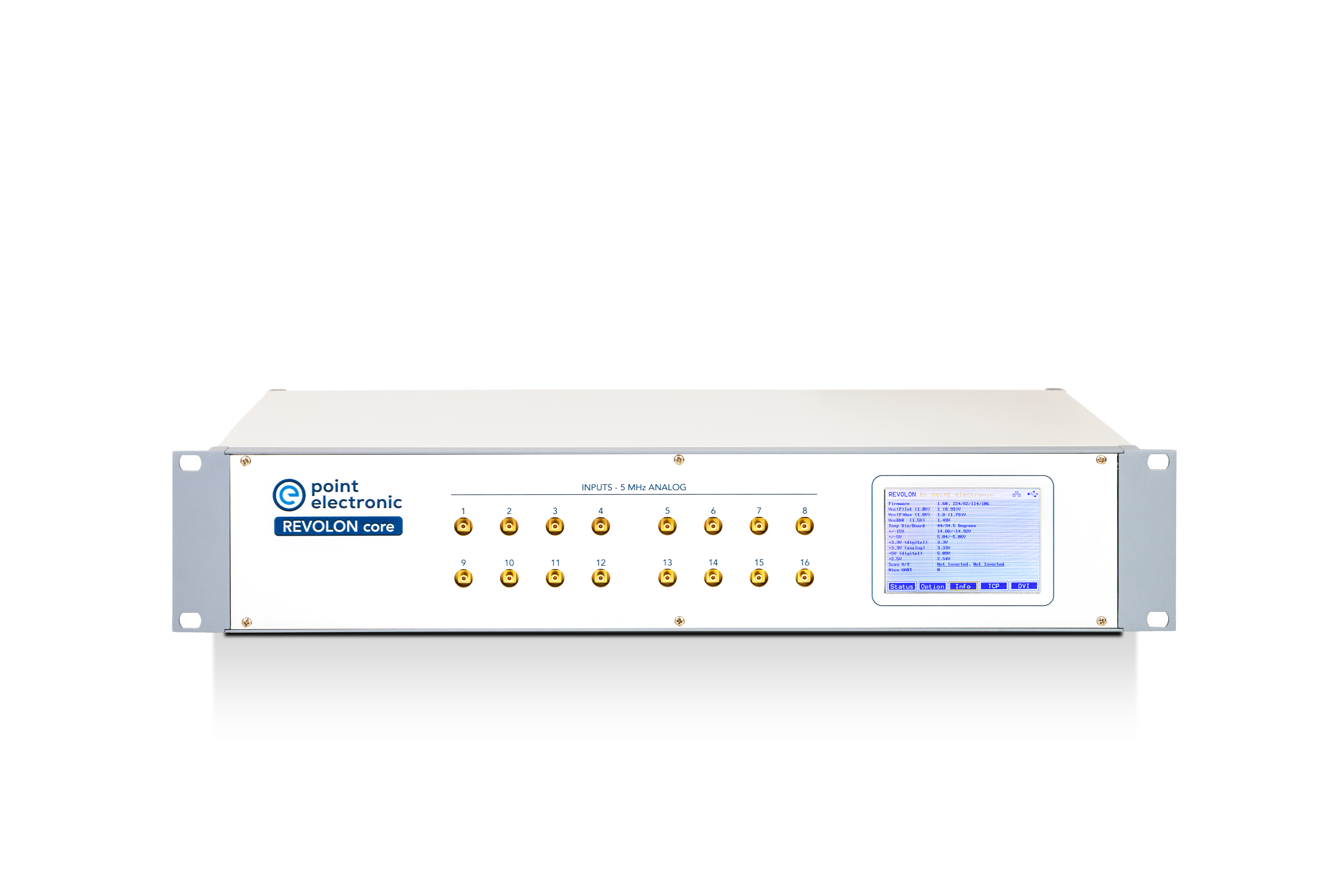

The perfect match for TEM efficiency: Connect ETI to REVOLON - our fast and flexible TEM Scan Controller for free beam control.
Easy control via touch display
Check all input trigger signals.
Configure all output trigger signals.
Select, mix or configure input channela,
Configure automated switching.
Display device status information.

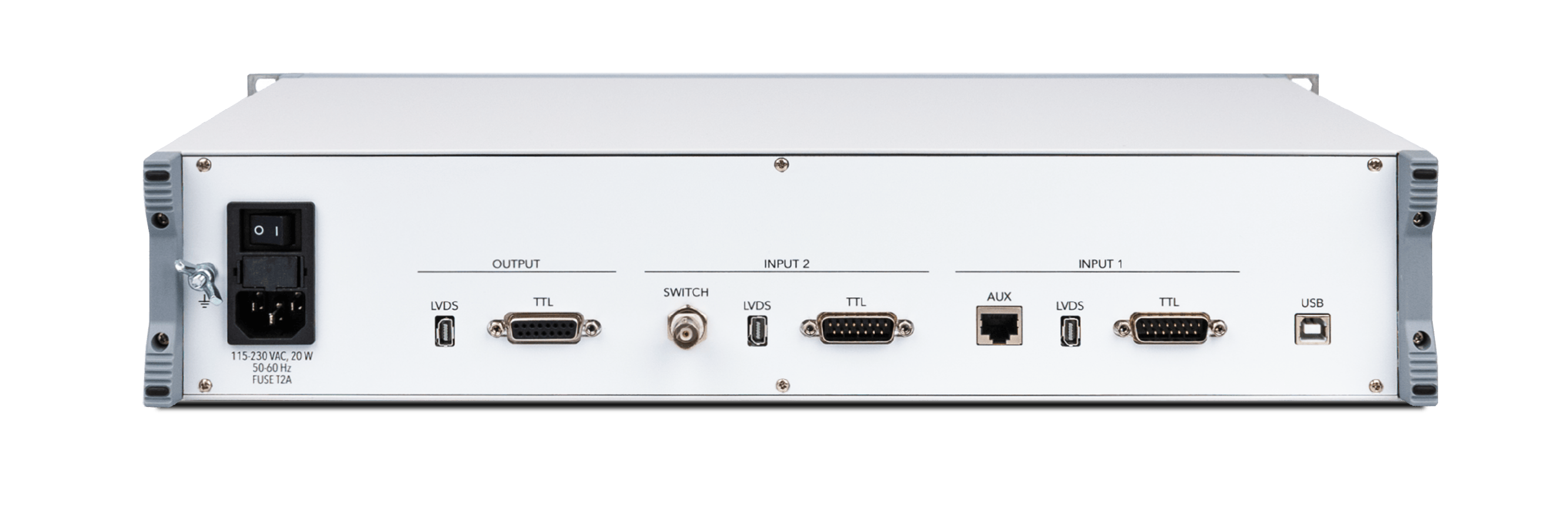

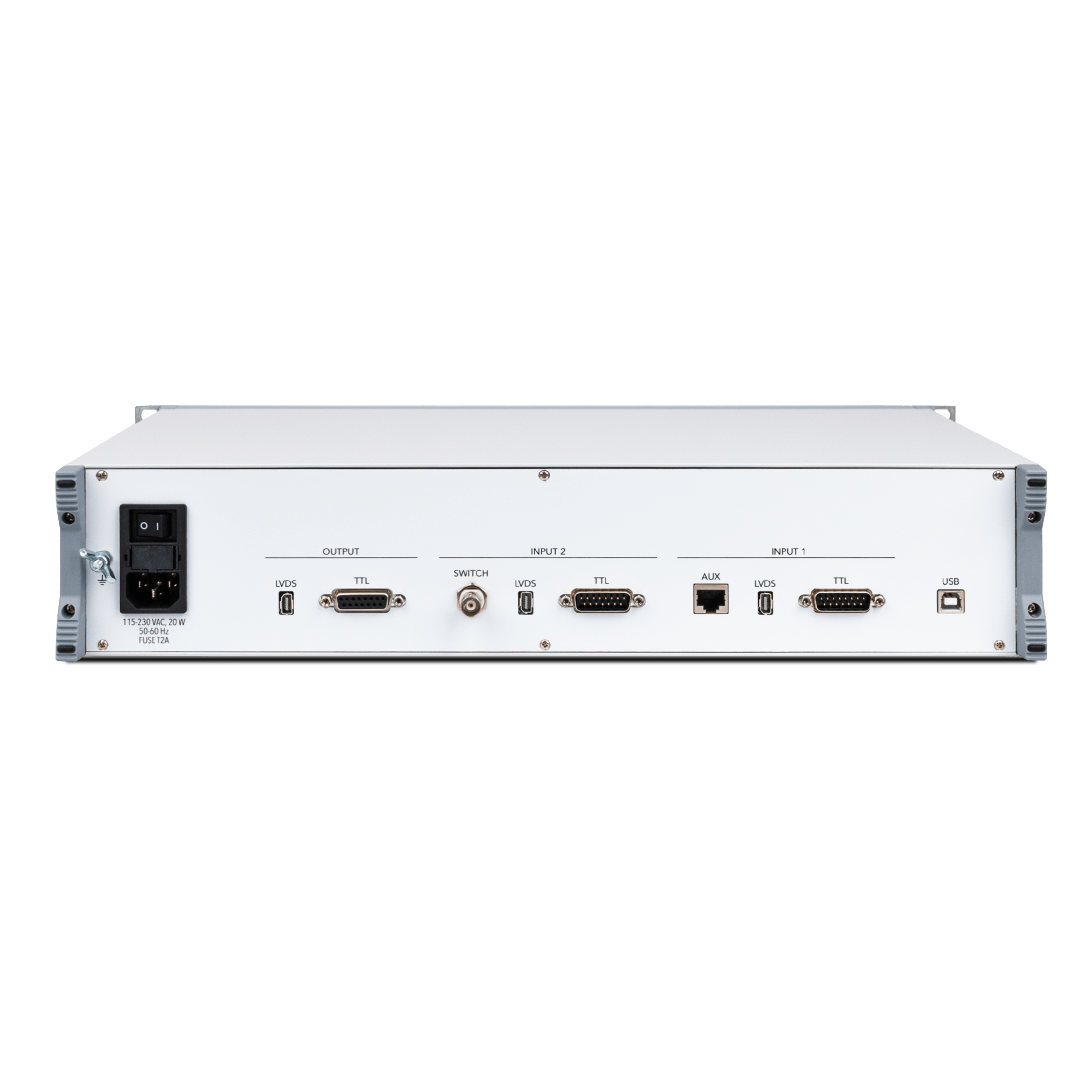

Inputs and Outputs

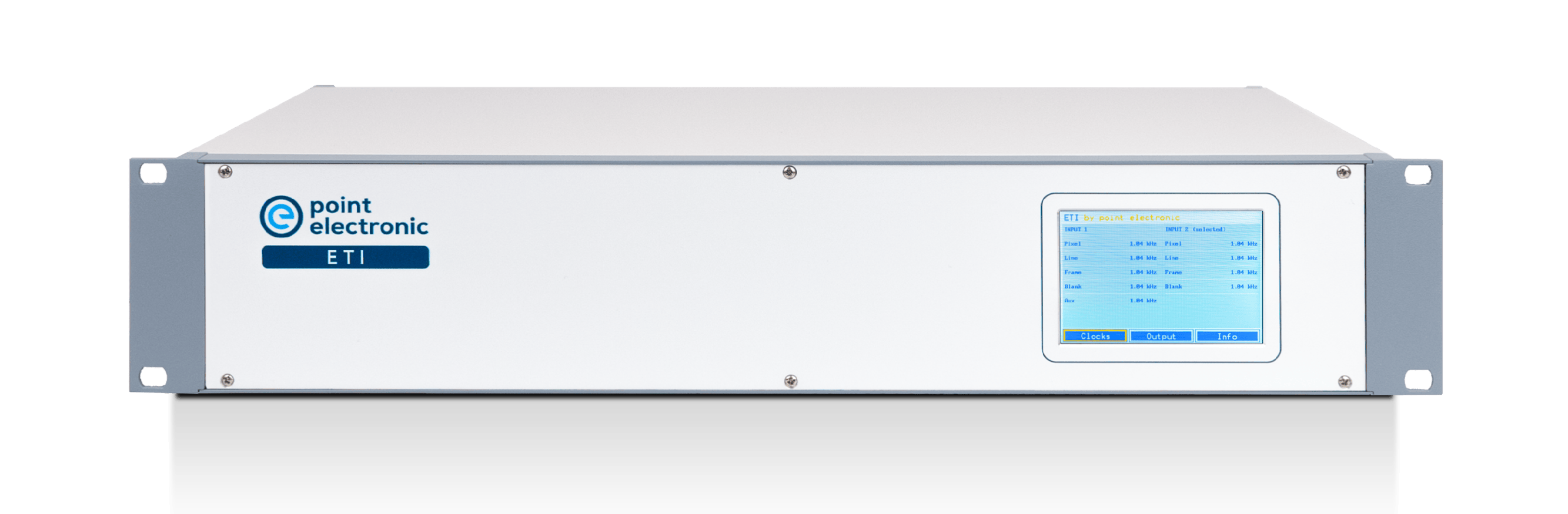

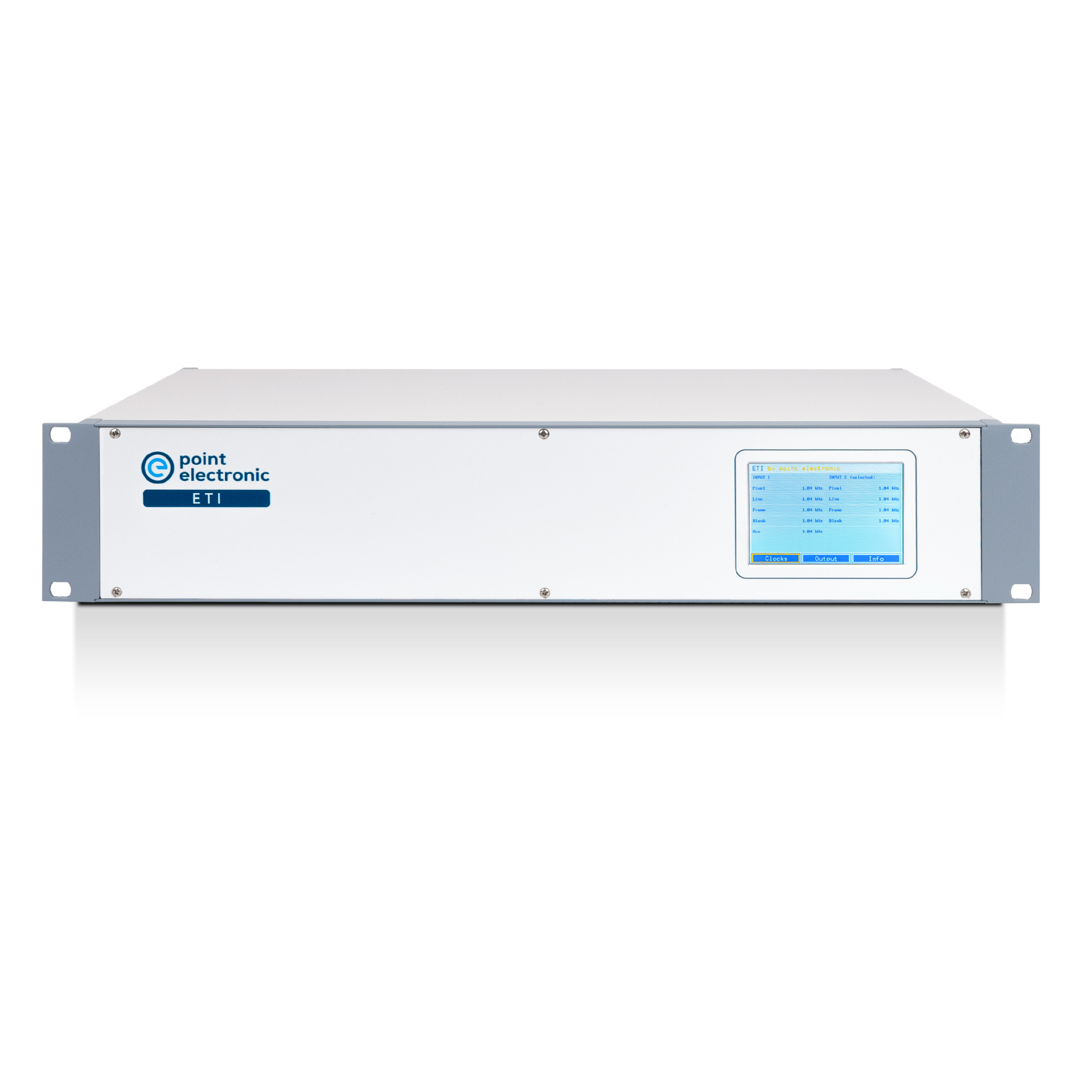

ETI is housed in a 19-inch enclosure with two height units (2 U) and equipped with
two trigger inputs
one trigger output
one AUX output
an automatic switch input
Each input and output includes Pixel, Line, Frame and BeamBlanker triggers, in TTL and LVDS.
